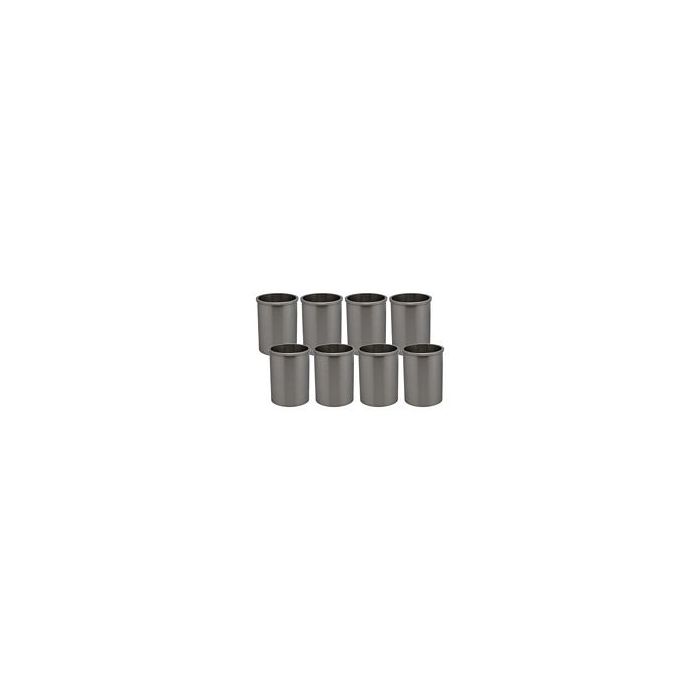

Cylinder Liner Top Hat Set V8 DA1185

This flanged repair liner is suitable for damaged/porous 3.9/4.0/4.2/4.6 Rover V8 blocks. The block will require reboring and flange recess machining before fitting. This liner is the complete solution for fixing these blocks. The liner can be bored to 96.00mm for overbored versions of the V8 engine, taking it to 5.0 litres. Semi Finished bore 94.00mm (less 1.00mm for final finishing in bore)

Dimensions

Inside diameter 94.00mm

Outside diameter 99.06mm

Length 135.64mm

Flange diameter 105.23mm

Flange depth 5.33mm
