Switch Series Wiper/Lights (Lucas Classic) 1H9077L
£14.36
£11.97
SKU
1H9077LLUCAS

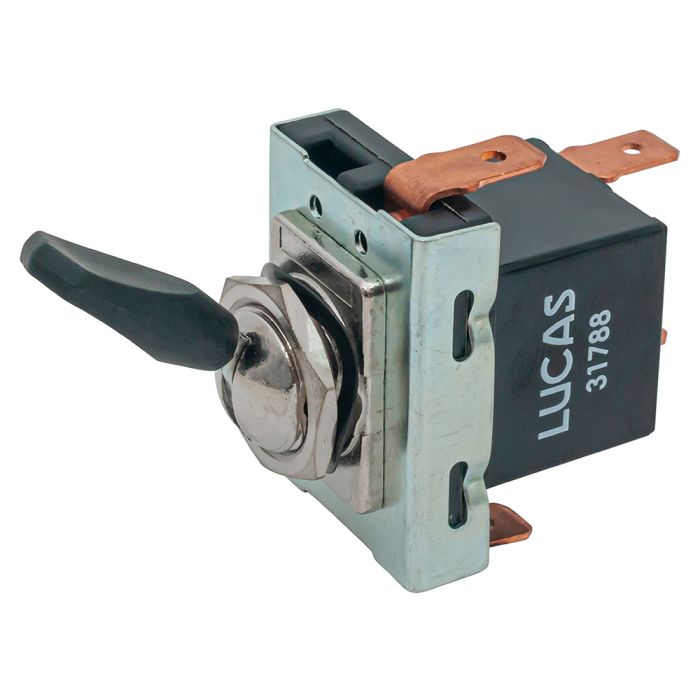

Lucas Type Switch 31788 / 1H9077L Position 1 (up) terminals 1,6 & 7 are all connected together
Position 2 (middle) terminals 1,4,6 & 7 are all connected together
Position 3 (down) terminals 1,4,7 & 8 are all connected together
3 Position Switch Lucas 31788 for Land Rover Series 2A & S3 - 1H9077L Genuine Lucas 3 position Master Light / Heater Switch / 2 Speed windscreen wiper Switch for Land Rover Series 2a & S3
Land Rover part number 1H9077L - Lucas part number 31788 Replaces Part nos. 560407, 30525, 31840, 31956, 34281 & 35710
Lucas type toggle switch providing Off-On-On functions, with 20 mm long black lever and chrome hex nut. (The hex nut can be replaced with the chrome locking ring from your Land Rover dash)
Requires hole 14 mm diameter. Connections via 6.3mm blade terminals Maximum load 10 amps
Suitable for 12 / 24 volts.
| SKU | 1H9077LLUCAS |
|---|---|
| Country of Manufacture | Taiwan, Province of China |
| Manufacturer | Lucas Classic |
